The Danjiang Bridge over the Tamsui River on the outskirts of Taipei, Taiwan, is currently under construction. The structure, designed by Zaha Hadid, is expected to be the world’s longest asymmetric cable-stayed bridge upon completion in 2025, at 920 m.

\n\n

Zaha Hadid won the Danjiang Bridge International Competition back in 2015 for her design of the asymmetrical bridge. When completed, it will connect the Tamsui District in New Taipei City with the Bali District across the river – thus relieving the pressure on other transport routes.

\n\n

The pylon in the centre of the bridge is a highlight. It towers into the air in the shape of an upturned ‘Y’ and stands, figuratively speaking, with its two legs in the river. The stay cables, which run in parallel to the top of the pylon from both sides, give the structure a futuristic appearance.

\n\n

Peri was involved in the construction of the pylon by providing, among other things, a custom-designed formwork solution for concreting a total area of 18,000 sq m. To create this futuristic look, Peri developed a freeform formwork system specifically for the project to construct 3,000 sq m of the entire surface.

\n\n

The complex, ever-changing shape of the pylon, which stretches upwards over 53 sections, posed the biggest challenge. Peri provided its versatile Vario, SCS and ACS systems, which could be individually adapted to the varying geometry.

\n\n

Customised formwork solutions

\n\n

Peri systems are characterised by their adaptability to unusual project requirements as well as their compatibility with other Peri products. Using its standard portfolio as a basis, Peri came up with a coordinated, customised solution from a single source for each section of the unique pylon shape.

\n\n

As such, the Vario GT 24 Girder Wall Formwork provided the ideal foundation for each section of the 200-m-high pylon. After all, this dimensionally stable formwork makes it possible to pour up to 18 m of concrete at a time.

\n\n

To realise the various shapes and radii of the pylon, Peri Climbing Systems were used alongside formwork solutions. A combination of ACS and SCS was chosen to ensure that processes were quick and efficient. The SCS Climbing System made it possible to construct the inclined design at the upper and lower ends. To help construct the central, straight section, the ACS Self-Climbing System was used, which climbs up the emerging building on rails.

\n\n

“Since we have been using Peri products, the project has been running smoothly. The efficiency is constantly high so that our requirements regarding the progress of the projects are fully fulfilled,” said Zeng Wei-Cheng, site manager at KSECO.

\n\n

Peri engineers are also on hand to advise the construction site team throughout the project. From start to finish, the experts provide support with planning and preparation, on-site construction and final completion.

\n\n

All images: Peri SE

\n\n

Note: This story has also been published in the Jul/Aug 2024 issue of SEAC (with more images). Click here to read online or here to download the PDF file (pages 42-44).

\n\n\n","article_image_uid":"https://dxfpracgmlczp.cloudfront.net/2024/07/1721302956835_Danjiang_Bridge_Construction_CMYK.jpg","article_expanded_image_uid":null,"article_image_caption":"Scheduled for completion in 2025, Taiwan’s new Danjiang Bridge will connect the Tamsui District in New Taipei City and the Bali District across the river.","publications":"7","tags":"bridge,Taiwan,formwork,Peri","category":"Case Studies"},{"title":"Innovative formwork solution for Songdo Central Park III project","date":"2022-10-04 08:39:35","id":4102,"author":"","blurb":"","blurb_image_uid":"https://dxfpracgmlczp.cloudfront.net/2022/09/1663908118378_2021_10_KP_Songdo_RCS-Max_DJI_0050_300cmyk.jpg","blurb_expanded_image_uid":null,"article":"\n\t\n\n\n

The new Songdo Central Park III consists of two 143-m-high luxury residential towers, located in Incheon city, South Korea. Each of them has 40 storeys, providing space for 351 residential units.

\n\n

The development is being built under strict safety requirements and within a tight construction schedule. It is estimated for completion in early 2023. The contractor on the project is Posco E&C Co Ltd.

\n\n

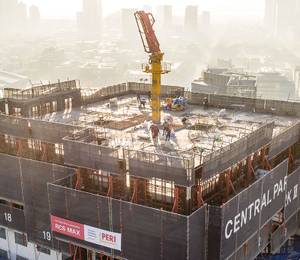

The RCS Max rail climbing system from Peri was deployed on site – the first time it was used in the country – to meet the demand for efficient construction and low personnel costs.

\n\n

A total of 84 consoles as well as hydraulic units were supplied during the construction of the residential towers. The RCS Max offers an innovative climbing process, smart safety features and easy assembly of the climbing consoles.

\n\n

Due to the strict guidelines by the South Korean government, safety was the top priority for all participants and processes. According to Peri, the RCS Max system was convincing the customer with decentralised hydraulic units that enabled all platforms to climb upwards synchronously. Thus potential sources of danger, like falling edges or falling parts, could be avoided.

\n\n

Other functions such as an automatic stop in case of overload or collision, a dead man’s control with several remote controls, and an emergency stop switch on each platform, rounded off the multi-layered safety concept of the rail-guided climbing system.

\n\n

Another highlight of the system was its efficient climbing process. The load transfer via the lower climbing section meant that the platforms were ready to be used again more quickly for the next section, which shortened the climbing cycle and ultimately the construction time of the project.

\n\n

Peri pointed out that the climbing process incorporated only a few steps, allowing site personnel to learn with minimal training effort. The intuitive plug-and-play configuration made the system very easy to set up and did not require any specialised personnel, keeping labour costs low right from the start.

\n\n

The integrated hydraulics of the RCS Max system also reduced crane use to a minimum. Via the RCS C Max climbing rails, which were particularly flexible in their inclination, the consoles were connected to the building at all times via climbing shoes. These, in turn, could be easily installed at chest height of the operator and without any ladder at all, leading to higher safety for the site personnel.

\n\n

Furthermore, the new RCS Max components are fully compatible with the RCS rail climbing system. This allowed the RCS Max to be combined with the RCS P climbing protection panel in South Korea. As the cylinder was firmly connected to the system at all times and climbed upwards with it, no awkward conversions were necessary. As a result, synchronous climbing of all platforms was possible, even with the enclosure solution. The work could be carried out safely even at great heights and with high wind loads.

\n\n

The new RCS Max hydraulic unit came up with new features as well. Any malfunctions were immediately indicated by a light signal on the power unit, so they could be quickly recognised and directly remedied. A display attached to the unit by cable also enabled the construction site team to fully monitor the entire climbing process. This reduced any downtimes and increased productivity on the construction site.

\n\n

Throughout the entire project, Peri provided support and advice to the site team. Intensive advance planning and on-site supervision of the climbing process ensured that the construction work progressed rapidly. In this way, the project requirements were met and the tight construction schedule adhered to.

\n\n

All images: Peri SE
